OVERVIEW

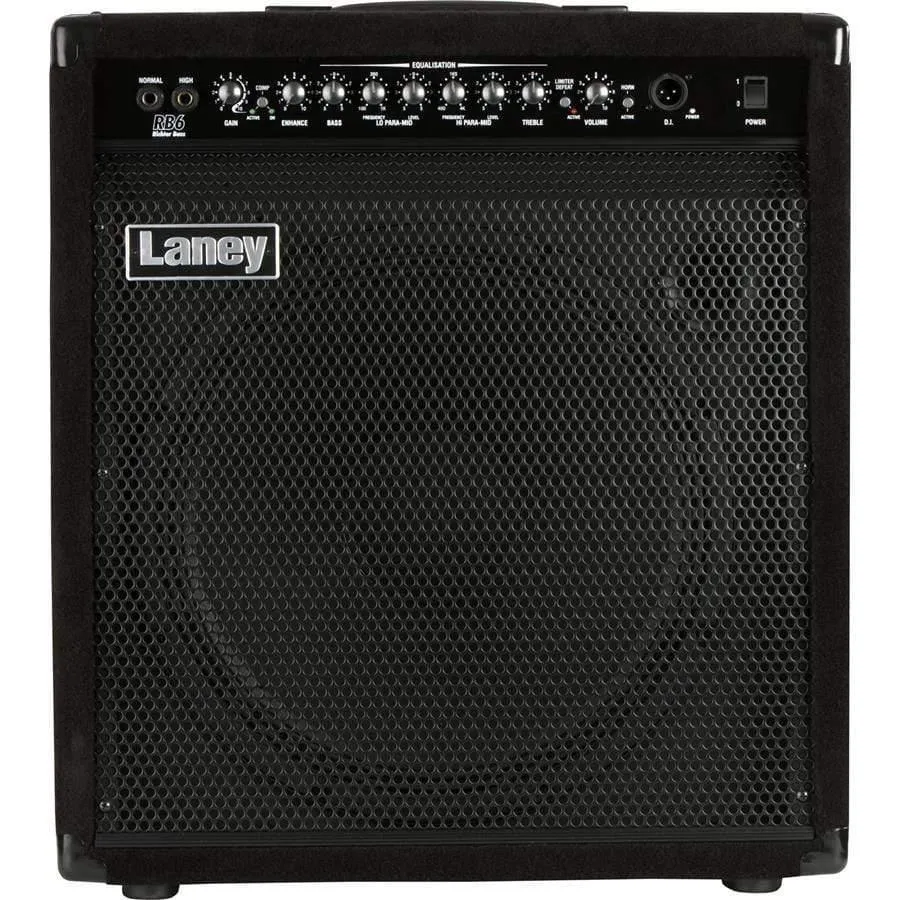

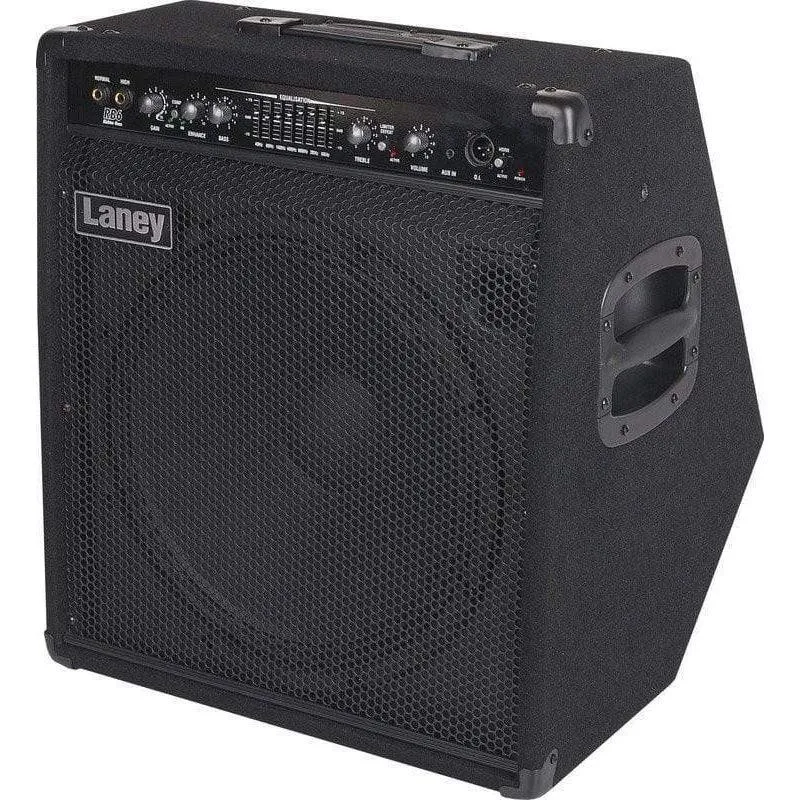

The RB6 preamp packs everything you'll need for getting a great tone, Hi & Normal jack inputs three-band EQ including a 7 band graphic mid for accurate low-end sculpting and an overall master Presence, Enhance an on-board Compressor a Switchable Limiter and an XLR DI socket. The RB6 features a Dual-position cabinet, which is great for rehearsal or stage use as they can be kicked back into monitor position mode allowing them to be used as a personal monitor when a DI is being taken from them into the main PA.
SPECIFICATIONS
| MODEL: | RB6 |
| CABINET DESIGN: | Kickback Combo |
| PACKED DIMENSIONS: | 580 x 535 x 460 |
| DRIVER: | 15" Custom Driver Switchable horn |
| INPUTS: | Normal & High |
| LIMITER: | Yes : Switchable (with status LED) |
| EQUALIZATION: | Bass, Treble and 7 Band Graphic Mid |
| IMPEDANCE: | 8 Ohms |
| CD INPUTS: | Yes (mini Jack) |
| SPEAKER CONNECTIONS: | 2x Jacks (4 Ohms) |
| KICK PROOF METAL GRILL: | Yes |
| ENHANCE: | Yes |
| FX LOOP: | Yes |
| DI SOCKET: | Yes : Pre EQ XLR |
| POWER: | 165 Watts |
| KICK PROOF METAL GRILL: | Yes |
| WEIGHT: | 21.1 Kg Packed, 18.5 Kg Unit |
| UNIT DIMENSIONS: | 553 x 485 x 410 |
| Type | Bass Amplifier |
| Weight | 21.1 Kg Packed, 18.5 Kg Unit |
| Brand | Laney |
| Dimensions | (HxWxD mm) 553 x 485 x 410 |
| Drivers | 15" Custom Driver Switchable horn |
| Equalization | Bass, 7-band graphic Mid, Treble & Enhance |
| Inputs | Normal & High |
| Kick Proof Metal Grill | Yes |
| Manufacturer Part Number : | RB6 |
| Model no. | RB6 |
| Total Power: | 165 Watts |
